Led Up Power Cc Dc 10-30v To Hurry! Converter Driver Adjustable Car 150w 10a Step Sale Charger Regulator Cv Peggie Vicente Rating: 4.2 out of 5
Fantastic Clearance Led Up Power Cc Dc 10-30v To Hurry! Converter Driver Adjustable Car 150w 10a Step Sale Charger Regulator Cv item can boost the top quality of your life. Eligible to be acquired. Low-cost cost and totally free delivery. Let's get prior to rates increase.
As an item that helps your requirements to obtain convenience, certainly this product is very intriguing to obtain. This product is really atmosphere pleasant. Where to cleanse it is extremely easy. You do not should search for services to clean up your acquired items, just do it yourself in the house making use of the guidelines that have been provided. This sophisticated and straightforward layout is ideal for those of you who enjoy the minimal design in every goods you have. Furthermore, there are a lot more different features that you could obtain and naturally really helps you to help with all your busy life.

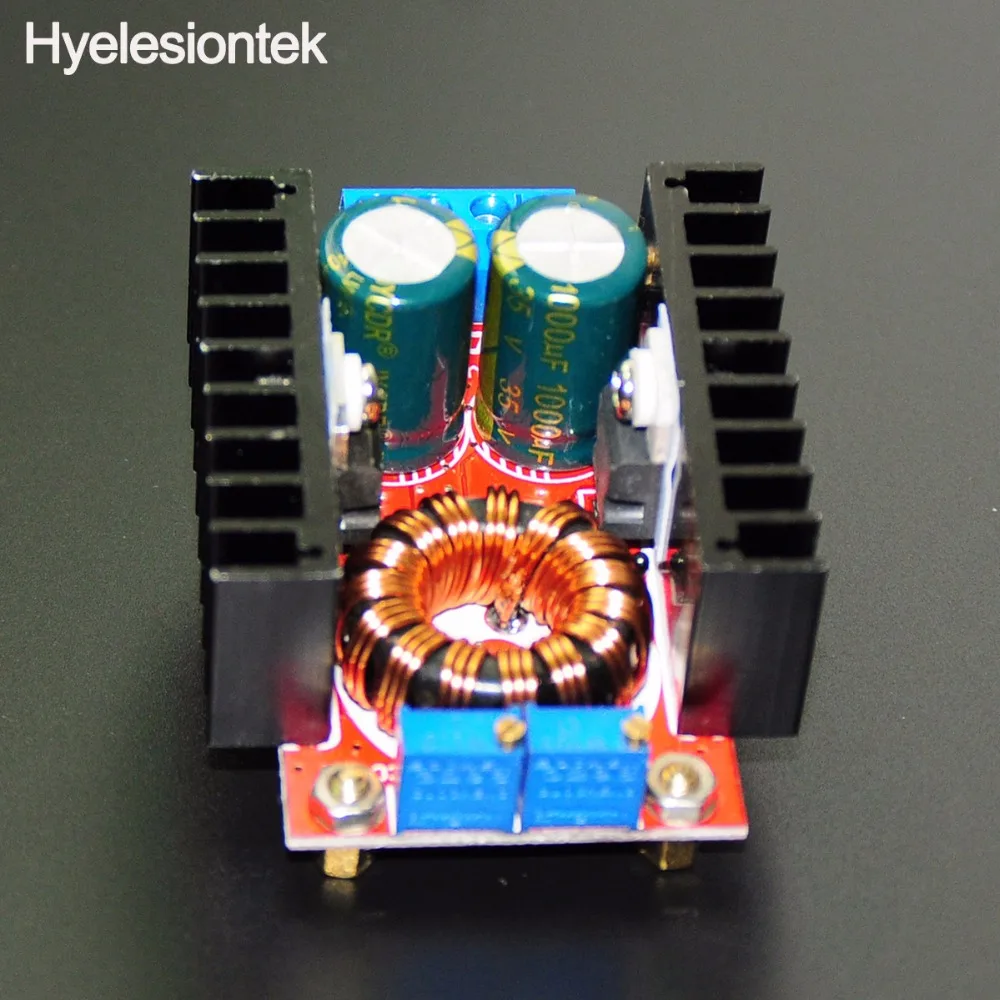

150W 6A DC-DC Step-Up Module Boost Converter Adapter Adjustable Power Supply DC Step Up Board Voltage Regulator 10-32V to 12-35V
-
100% Brand new and high quality DC-DC Boost Converter 10-30V to 12-35V Step Up Charger Power Module
-
10-30V to 12-35V Step Up 150W 10A DC-DC Boost Converter Car Power Supply LED Driver Charger Adjustable Module Voltage Regulator
-
Non-isolated step-up CC Converter
-
Input adjustable undervoltage protection
-
Over temperature protection
-
Input voltage : DC 10-30 V
-
Output Voltage : DC 12-35 V(Adjustable)
-
Output Current : 10A(MAX,adjustable)
-
Input current : 16A (MAX)
-
Output Power : natural cooling 100W (MAX), strengthening cooling 150W (MAX) real power
-
Conversion efficiency : 94% (Input @24V ,Output @35V/2A)
-
Output ripple : 350mV (input @12V , Output @24V/3A )
-
Working Temperature : industrial (- 40 ° c to +85 °c) ( environmental temperature, more than 40 degrees, please reduce power to use, or - enhance cooling
-
No-load current : 20mA typical
-
Dynamic response speed : 300uS 5%
-
Short circuit protection: No (Please installs the fuse or protection circuit at input parts)
-
Input Reverse protection: No (please comply with a reverse protection or connect a diode at input parts.)
-
The temperature of the step up Module can not exceed 80 Degree
-
12V battery discharge voltage should be greater than 10.5V, 3.7V lithium batteries in Series discharge voltage should be greater than 2.7V
-
Size : 65*47*23.5 mm
-
Applications :
-
DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V(adjustable freely), However, the output voltage can not be less than the input voltage.
-
Boost charger
-
Car , laptop power supply
-
Solar battery charger
-
for your electronic equipment
-
Pre-supply system
-
When adjust the blue potentiometer ,please use a multimeter to monitor the voltage
-
Rotating Clockwise can rise the voltage while rotating counterclockwise could lower the voltage
-
When the module output voltage can not be adjusted ( For example, the output voltage is always equal to the input voltage ) Please adjust the potentiometer counterclockwise 20 laps (20 turns) or more untill it works
-
Package including : 1pcs 150W 10A 10-30V to 12-35V Step Up CC CV DC DC Booster Converter Car Power Supply LED Driver Charger Adjustable Voltage Regulator
